Microhardness (Vickers & Knoops)

Testing metallic and non-metallic materials


The tester has a range of nine loads, from 98.07 mN (10 g) to 19.61 N (2 kg).

Automatic reading of Vickers, Knoop and Brinell indentations

Automatic light adjustment

Excellent Reproducibility

Patented Automatic Load

Automatic Lens Turret (Duramin-2)

Driven Operation
Values can be entered and displayed (in graphic or text mode via the LCD Touch-Display)

High-Resolution Measurement Probe. Minimum Measurement unit 0.01 μm

High Precision Mechanical Stage with Micrometer Screw Arrangement for exact positioning in the X-Y Plane

Visual control of all results and live statistics

Series and One-Off Measurements possible

Direct conversion in HR, HB, HK, and other scales

Surface Correction for Flat, Cylindrical and Spherical samples

Measurement Statistics (max and min values, mean, standard deviation and bar chart)

Customizable test report with, specimen information, statistics, and graphs

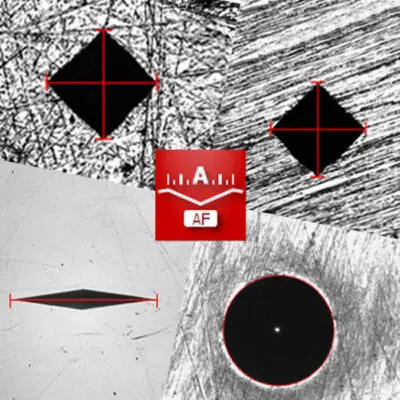

AUTOMATIC READING
Vickers, Knoop, and Brinell measurements. The AI software will automatically measure indents on any surface from perfectly polished to rough & etched samples.

AUTOMATIC ILLUMINATION
Automatic light regulation on dark, opaque or polished samples. The software controls and adjusts the light and contrast to find the right combination and measure the indent.

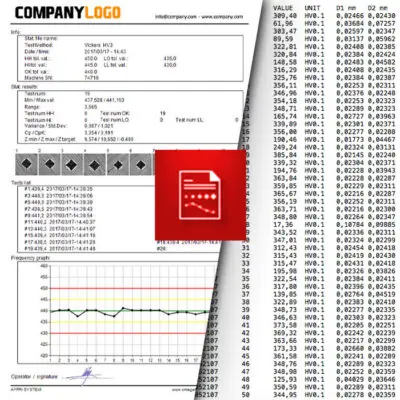

TEST REPORT
Customizable test report and information. Put as much sample information as you need, including pictures of the indents and test area. Examine results, statistics, and CHD diagram.

VIEW MORE

Microhardness Testing Standards Conducted by RTI

* ISO/IEC 17025:2017 PJLA Accreditation #128874

ASTM A892-09(2020)

    Standard Guide for Defining and Rating the Microstructure of High Carbon Bearing Steels Read More

    Metallograph Microscope
    +3
    Microhardness Knoop Standards Microhardness Vickers Microstructure Standards

    ISO 14271

      specifies the procedures for the hardness testing of etched cross-sections of resistance spot, projection, and seam welds Read More

      Microhardness Vickers

      ISO 9015-2:2016

        specifies microhardness testing on transverse sections of welded joints of metallic materials with high hardness gradients Read More

        Microhardness Vickers

        ASTM E140-12B(2019)e1

          Standard Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness, Scleroscope Hardness,… Read More

          Hardness Brinell Standards
          +3
          Hardness Rockwell Testing Standards Microhardness Knoop Standards Microhardness Vickers
