Features

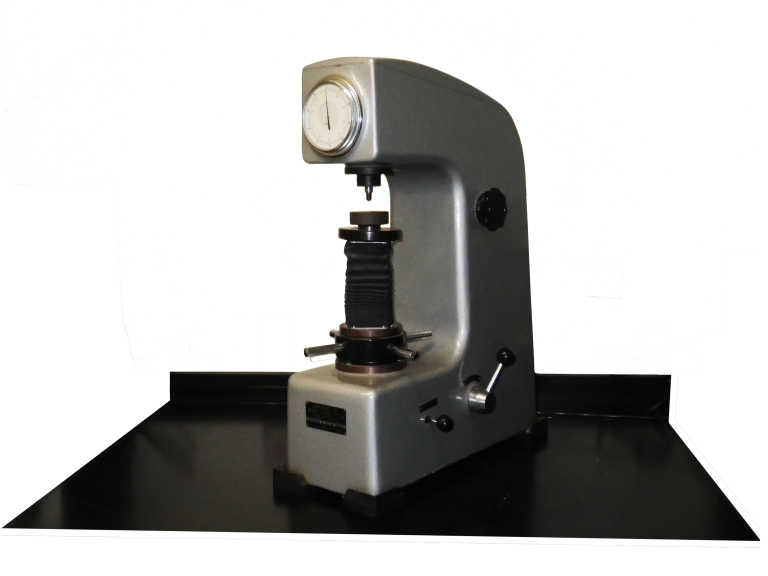

Designed for measuring hardness of metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape
Hardness tester is simple in design and easy to operate, yet sensitive and accurate testing results can be obtained with these testers
These precision material testing instruments are ideally suitable for laboratories, tool rooms, inspection departments, schools, heat treat departments and factories.
Conforms to all international standards
Comes complete with standard accessories shown below
Standard Accessories
5 3/4” Testing table
2 3/16” Testing table
2 3/16” Testing table w/v-groove
120 Degree diamond penetrator
1/16” Steel ball penetrator
1Pc rockwell a test block
1Pc rockwell b test block
3Pcs rockwell c test block
Loads & Indicators
Max load 150 kg
Load range 60, 100,& 150 kg.
Initial load range 10 kg
Max test ht. 6 3/4”
Throat depth 5 1/4”
Max depth of spindle below base 2”
Base size 7” x 18”
Machine height 24.5”
Approx weight 170 lbs
Rockwell Hardness Testing Standards Conducted by RTI
* ISO/IEC 17025:2017 PJLA Accreditation #128874
specifies the method for Rockwell regular and Rockwell superficial hardness tests Read More
Standard Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness, Scleroscope Hardness,… Read More
Standard Test Method for Rockwell Hardness of Plastics and Electrical Insulating Materials Read More
Standard Test Methods for Rockwell Hardness of Metallic Materials Read More
